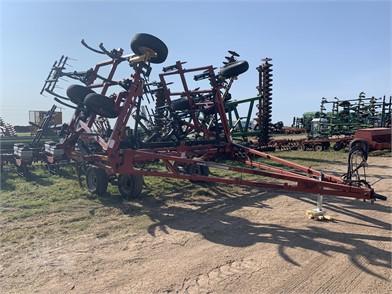

Case IH PTX300 Chisel Plow Official Workshop Service Repair Manual
Case IH PTX300 Chisel Plow Official Workshop Service Repair Manual
The Best PDF Manuals Online Includes : Bookmarks + Searchable Text + Index = Fast Navigation And Best Organization !
This is the COMPLETE Official Service Repair Manual for the Case IH Chisel Plow.
This manual contains deep information about maintaining, assembly, disassembly and servicing your Flex Air 810 Applicator.
This PDF file is Bookmarked and SEARCHABLE to make what you need easy to find.
which give you complete step by step operations on repair, servicing, technical maintenance & troubleshooting procedures for your machine.
this manual offers full information you need for repair your machine.
the information in this manual will enable you to find trouble and to understand how to repair and maintain your machine without going into service.
all pages are printable, so run off what you need and take it with you into the garage or workshop.
Models & Serials Covered:
87053720
Table of Contents:
1 - SAFETY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
Safety
Decal Locations
Reflector Decals, Slow Moving Vehicle Sign and
Transport Lighting
Transport Lighting Wiring Schematic
2 - ADJUSTMENTS . . . . . . . . . . . . . . . . . . . . . . . 2-1
General Service Information
Initial Leveling
Initial Leveling Procedure
Final Leveling
Final Leveling Procedure
Trip Adjustment
Sweep Pitch Adjustment
3 - MECHANICAL SERVICE . . . . . . . . . . . . . . . 3-1
Machine Specifications - Imperial Units
Machine Specifications - Metric Units
Troubleshooting Tables
Grease Locations
Daily Maintenance (Every 10 Hours)
Weekly Maintenance (Every 50 Hours)
Semi-Annual Maintenance (Every 200 Hours)
Yearly Maintenance
Welding Procedures
Frame Components
Wheel Bolt Torque
Tire Pressures and Hub and Spindle Details
Hub / Spindles / Wheels / Walking Beams
Removal and Replacement of Bushings on Bell Crank
Assembly
4 - HYDRAULICS . . . . . . . . . . . . . . . . . . . . . . . . . 4-1
Hydraulics
Replace Seals in Cylinders
Hydraulic Cylinder Components
Hydraulic Schematics
Ram Mount Depth Stop Connection
5 - ELECTRICAL . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1
Connector Service Kit
6 - TRIPS AND OPENERS . . . . . . . . . . . . . . . . . 6-1
Trip Compressor Tool Kit
Tension Link Kit TP-133K - 550lb Trip
Adjustment of Trip Assemblies
Anti-Skewing Trip Shim Installation
Trip Shim Kit for 650lb Trip
7 - OPTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1
Harrows
Mounted Harrow Assembly
Heavy Harrows
High Draft Assembly
Anhydrous Hitch
Front Hitch Weight Assembly
INDEX
========================================
