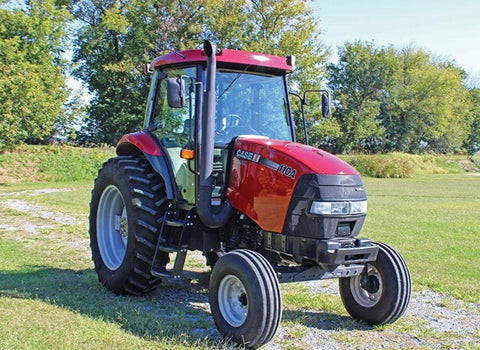

Case IH Farmall 110A Farmall 120A Farmall 130A Tier 3 Tractors Official Workshop Service Repair Manual
Case IH Farmall 110A Farmall 120A Farmall 130A Tier 3 Tractors Official Workshop Service Repair Manual
The Best PDF Manuals Online Includes : Bookmarks + Searchable Text + Index = Fast Navigation And Best Organization !
This is the COMPLETE Official Service Repair Manual for the Case IH Tractor.
This manual contains deep information about maintaining, assembly, disassembly and servicing your Tractor.
This PDF file is Bookmarked and SEARCHABLE to make what you need easy to find.
This Manual contains information and data to this model. has specs, diagrams, and actual real photo illustrations, and schemes,
which give you complete step by step operations on repair, servicing, technical maintenance & troubleshooting procedures for your machine.
this manual offers full information you need for repair your machine.
the information in this manual will enable you to find trouble and to understand how to repair and maintain your machine without going into service.
all pages are printable, so run off what you need and take it with you into the garage or workshop.
which give you complete step by step operations on repair, servicing, technical maintenance & troubleshooting procedures for your machine.
this manual offers full information you need for repair your machine.
the information in this manual will enable you to find trouble and to understand how to repair and maintain your machine without going into service.
all pages are printable, so run off what you need and take it with you into the garage or workshop.
Models & Serials Covered:
Part number 47793363
English
April 2017
Product Engine
Farmall 110A Com cabine, Tier 3 F4CE9484E*J602
Farmall 110A Sem cabine, Tier 3 F4CE9484E*J602
Farmall 120A Com cabine, Tier 3 F4CE9484E*J602
Farmall 120A Sem cabine, Tier 3 F4CE9484E*J602
Farmall 130A Com cabine, Tier 3 F4CE9684G*J601
Farmall 130A Sem cabine, Tier 3 F4CE9684G*J601
English
April 2017
Product Engine
Farmall 110A Com cabine, Tier 3 F4CE9484E*J602
Farmall 110A Sem cabine, Tier 3 F4CE9484E*J602
Farmall 120A Com cabine, Tier 3 F4CE9484E*J602
Farmall 120A Sem cabine, Tier 3 F4CE9484E*J602
Farmall 130A Com cabine, Tier 3 F4CE9684G*J601
Farmall 130A Sem cabine, Tier 3 F4CE9684G*J601
Table of Contents:
Engine....................................................................................... 10
[10.001] Engine and crankcase . . . . . . . . . . . . . . . . . . . . . . . . . . . .10.1
[10.216] Fuel tanks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10.2
[10.218] Fuel injection system. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10.3
[10.250] Turbocharger and lines. . . . . . . . . . . . . . . . . . . . . . . . . . . 10.4
[10.254] Intake and exhaust manifolds and muffler . . . . . . . . . . 10.5
[10.400] Engine cooling system . . . . . . . . . . . . . . . . . . . . . . . . . . . 10.6
Clutch ....................................................................................... 18
[18.110] Clutch and components . . . . . . . . . . . . . . . . . . . . . . . . . . 18.1
Transmission.............................................................................. 21
[21.114] Mechanical transmission . . . . . . . . . . . . . . . . . . . . . . . . . 21.1
[21.130] Mechanical transmission external controls. . . . . . . . . . .21.2
[21.140] Mechanical transmission internal components. . . . . . . 21.3
[21.112] Power shuttle transmission. . . . . . . . . . . . . . . . . . . . . . . . 21.4
[21.134] Power shuttle transmission external controls . . . . . . . . 21.5
[21.154] Power shuttle transmission internal components . . . . 21.6
[21.160] Creeper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21.7
[21.109] Transmission cooler and lines. . . . . . . . . . . . . . . . . . . . . . 21.8
Four-Wheel Drive (4WD) system .............................................23
[23.304] Four-Wheel Drive (4WD) gearbox . . . . . . . . . . . . . . . . . . 23.1
[23.314] Drive shaft. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23.2
Front axle system .......................................................................25
[25.100] Powered front axle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25.1
[25.102] Front bevel gear set and differential . . . . . . . . . . . . . . . . 25.2
[25.108] Final drive hub, steering knuckles, and shafts . . . . . . . . 25.3
Rear axle system........................................................................ 27
[27.100] Powered rear axle. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27.1
[27.106] Rear bevel gear set and differential . . . . . . . . . . . . . . . . .27.2
[27.120] Planetary and final drives . . . . . . . . . . . . . . . . . . . . . . . . . 27.3
Power Take-Off (PTO) ..............................................................31
[31.104] Rear electro-hydraulic control . . . . . . . . . . . . . . . . . . . . .31.1
[31.114] Two-speed rear Power Take-Off (PTO) . . . . . . . . . . . . . 31.2
Brakes and controls ..................................................................33
[33.202] Hydraulic service brakes . . . . . . . . . . . . . . . . . . . . . . . . . . 33.1
[33.110] Parking brake or parking lock . . . . . . . . . . . . . . . . . . . . . .33.2
Hydraulic systems......................................................................35
[35.000] Hydraulic systems. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35.1
[35.104] Fixed displacement pump . . . . . . . . . . . . . . . . . . . . . . . . .35.2
[35.102] Pump control valves. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35.3
[35.359] Main control valve . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35.4
[35.204] Remote control valves . . . . . . . . . . . . . . . . . . . . . . . . . . . .35.5
[35.114] Three-point hitch control valve . . . . . . . . . . . . . . . . . . . . 35.6
Hitches, drawbars, and implement couplings........................37
[37.100] Drawbars and towing hitches . . . . . . . . . . . . . . . . . . . . . .37.1
[37.110] Rear three-point hitch . . . . . . . . . . . . . . . . . . . . . . . . . . . .37.2
Frames and ballasting ..............................................................39
[39.140] Ballasts and supports . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39.1
Steering..................................................................................... 41
[41.200] Hydraulic control components. . . . . . . . . . . . . . . . . . . . .41.1
[41.216] Cylinders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41.2
[41.432] Autoguidance steering . . . . . . . . . . . . . . . . . . . . . . . . . . .41.3
Wheels...................................................................................... 44
[44.511] Front wheels. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44.1
[44.520] Rear wheels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44.2
Cab climate control ..................................................................50
[50.200] Air conditioning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50.1
Electrical systems .......................................................................55
[55.100] Harnesses and connectors. . . . . . . . . . . . . . . . . . . . . . . . . 55.1
[55.201] Engine starting system . . . . . . . . . . . . . . . . . . . . . . . . . . . .55.2
[55.301] Alternator. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .55.3
[55.302] Battery. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55.4
[55.045] Front axle control system . . . . . . . . . . . . . . . . . . . . . . . . . .55.5
[55.408] Warning indicators, alarms, and instruments . . . . . . . . .55.6
Platform, cab, bodywork, and decals ......................................90
[90.150] Cab. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90.1
[90.151] Cab interior. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .90.2
[90.110] Operator platform less cab . . . . . . . . . . . . . . . . . . . . . . . . 90.3
[90.118] Protections and footboards. . . . . . . . . . . . . . . . . . . . . . . . 90.4
[90.114] Operator protections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .90.5
[90.120] Mechanically-adjusted operator seat. . . . . . . . . . . . . . . . .90.6
[90.124] Pneumatically-adjusted operator seat. . . . . . . . . . . . . . . .90.7
[90.100] Engine hood and panels . . . . . . . . . . . . . . . . . . . . . . . . . . . 90.8
[90.102] Engine shields, hood latches, and trims . . . . . . . . . . . . . . 90.9
========================================
