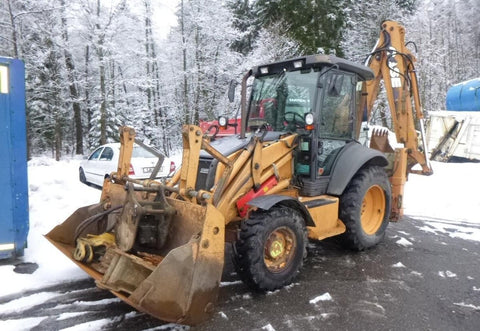

Case 680 Backhoe Loader Official Workshop Service Repair Manual

Case 680 Backhoe Loader Official Workshop Service Repair Manual

  • $35.00
  • Save $85




Case 680 Backhoe Loader Official Workshop Service Repair Manual

The Best  PDF Manuals Online Includes : Bookmarks + Searchable Text + Index = Fast Navigation And Best Organization !

 This is the COMPLETE Official Service Repair Manual for the Case 680 Backhoe Loader.

 This manual contains deep information about maintaining, assembly, disassembly and servicing your Backhoe Loader.

This PDF file is Bookmarked and SEARCHABLE to make what you need easy to find.

This Manual contains information and data to this model. has specs, diagrams, and actual real photo illustrations, and schemes,
which give you complete step by step operations on repair, servicing, technical maintenance & troubleshooting procedures for your machine.
 this manual offers full information you need for repair your machine.
the information in this manual will enable you to find trouble and to understand how to repair and maintain your machine without going into service.
all pages are printable, so run off what you need and take it with you into the garage or workshop.


Models & Serials Covered:

9-77442

Table of Contents:

10 SERIES - GENERAL
Specifications
Supplement 1 - Stall Speeds
20 SERIES - ENGINE
Cylinder Head - Diesel
Cylinder Head - Gasoline
Assemblies Contained in Engine Block
Engine Counter Balancer
Water Pump
Spark Ignition Governor
Governor Linkage
30 SERIES - FUEL SYSTEM
Injectors, Pump, Powrcel
Supplement 1 - Throttle Linkage
Carburetor
Supplement 1 - Throttle Linkage
Electrical Fuel Pump
40 SERIES - HYDRAULICS
How It Works (Hydraulic System) and
Pressure Check
Hydraulic Cylinders
Hydraulic Valve
Hydraulic Pump
50 SERIES - STEERING
Steering System
Front Axle
Steering Pump
60 SERIES - POWER TRAIN
Four Speed Mechanical Transmission,
Differential, Final Drive, and Differential
Brakes
Supplement to Section S
Forward-Reverse Transmission
80 SERIES - ELECTRICAL
Wiring Diagrams
Electrical
90 SERIES - MOUNTED EQUIPMENT
Model 34 Backhoe


========================================
