Case 621F Tier 4 Wheel Loader Official Workshop Service Repair Manual

Case 621F Tier 4 Wheel Loader Official Workshop Service Repair Manual

  • $35.00
  • Save $165




Case 621F Tier 4 Wheel Loader Official Workshop Service Repair Manual

The Best  PDF Manuals Online Includes : Bookmarks + Searchable Text + Index = Fast Navigation And Best Organization !

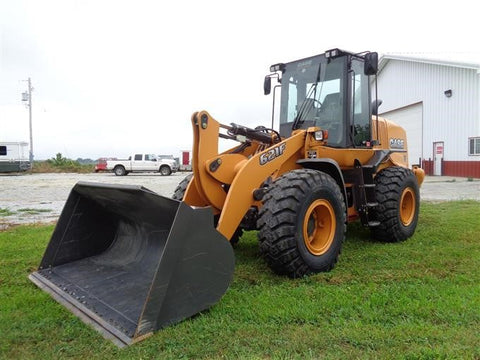

 This is the COMPLETE Official Service Repair Manual for the Case 621F TIER 4 Wheel Loader.

 This manual contains deep information about maintaining, assembly, disassembly and servicing your Wheel Loader.

This PDF file is Bookmarked and SEARCHABLE to make what you need easy to find.

This Manual contains information and data to this model. has specs, diagrams, and actual real photo illustrations, and schemes,
which give you complete step by step operations on repair, servicing, technical maintenance & troubleshooting procedures for your machine.
 this manual offers full information you need for repair your machine.
the information in this manual will enable you to find trouble and to understand how to repair and maintain your machine without going into service.
all pages are printable, so run off what you need and take it with you into the garage or workshop.


Models & Serials Covered:

Print No. 47387703

Table of Contents:

General Tab 1
Section Index - General
General Torque Specifications 1001
Fluids and Lubricants 1002
Metric Conversion Chart 1003
Engines Tab 2
Section Index - Engines
Engine and Radiator Removal and Installation 2000
Stall Tests 2002
After Cooler 2003
SCR System Sensors 2020
SCR Catalyst 2030
Engine Intake Temperature/Humidity Sensor 2040
DEF/ADBLUE Heater Control Valve 2050
DEF/ADBLUE DNOx Supply Module 2060
DEF/ADBLUE Dosing Injector 2070
DEF/ADBLUE Supply Tank 2080
DEF/ADBLUE Supply Tank Level and Temperature Sensor/Pick-up and Heater 2090
DEF/ADBLUE Supply Filters 2100
For Engine Repair, See the Engine Service Manual (sold separately) 84392428
Fuel System Tab 3
Section Index - Fuel System
For Fuel System Repair, See the Engine Service Manual (sold separately) 84392428
Electrical Tab 4
Section Index - Electrical
Removal and Installation of Starter and Alternator 4001
Electrical Specifications and Troubleshooting 4002
Batteries 4003
Instrument Cluster 4005
Steering Tab 5
Section Index - Steering
Removal and Installation of Steering Components 5001
Steering Specifications, Pressure Checks, and Troubleshooting 5002
Steering Cylinders 5005
Center Pivot 5006
Auxiliary Steering Motor and Pump 5008
Joystick Steering System (JSS) 5009
Power Train Tab 6
Section Index - Power Train
Removal and Installation of Power Train Components 6001
Transmission Specifications, Pressure Checks, and Troubleshooting 6002
4 Speed Transmission 6003
Front Axle 6004
Rear Axle 6004
Drive Shafts, Center Bearing, and Universal Joints 6005
Wheels and Tires 6006
Brakes Tab 7
Section Index - Brakes
Removal and Installation of Brake Components 7001
Hydraulic Brake Troubleshooting 7002
Brake Pump 7003
Brake Accumulators 7004
Parking Brake 7008
Hydraulics Tab 8
Section Index - Hydraulics
How to Read Hydraulic Schematics 8000
Removal and Installation of Hydraulic Components 8001
Hydraulic Specifications, Troubleshooting, and Pressure Checks 8002
Cleaning the Hydraulic System 8003
Loader Control Valve 8005
Cylinders 8006
Coupler Solenoid Locking Valve 8007
Ride Control Accumulator 8013
Ride Control Valve 8014
Mounted Equipment Tab 9
Section Index - Mounted Equipment
Air Conditioning Troubleshooting and System Checks For System Checks For System with HFC-134a
Refrigerant 9002
Air Conditioner System Service 9003
Removal And Installation Of Air Conditioning And Heater Components 9004
Loader 9006
Roll Over Protective Structure (ROPS), Cab Structural Frame (CSF) 9007
Cab Glass Installation 9010
Rear View Camera Installation and Removal 9020
Electrical Schematic Foldouts and Hydraulic Schematic Foldout In Rear Pocket

========================================
