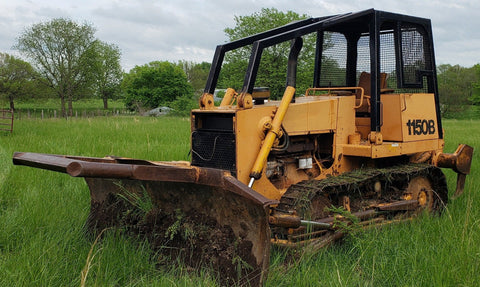

Case 1150B Crawler Official Workshop Service Repair Manual

Case 1150B Crawler Official Workshop Service Repair Manual

  • $45.00
  • Save $155




Case 1150B Crawler Official Workshop Service Repair Manual

The Best  PDF Manuals Online Includes : Bookmarks + Searchable Text + Index = Fast Navigation And Best Organization !

 This is the COMPLETE Official Service Repair Manual for the Case 1150B Crawler.

 This manual contains deep information about maintaining, assembly, disassembly and servicing your Case 1150B Crawler.

This PDF file is Bookmarked and SEARCHABLE to make what you need easy to find.

This Manual contains information and data to this model. has specs, diagrams, and actual real photo illustrations, and schemes,
which give you complete step by step operations on repair, servicing, technical maintenance & troubleshooting procedures for your machine.
 this manual offers full information you need for repair your machine.
the information in this manual will enable you to find trouble and to understand how to repair and maintain your machine without going into service.
all pages are printable, so run off what you need and take it with you into the garage or workshop.


Models & Serials Covered:

9-72547

Table of Contents:

10 SERIES - GENERAL
General Engine Specifications
Detailed Engine Specifications
Detaiied Fuel Specifications
Maintenance and Lubrication
Torque Chart
20 SERIES - ENGINE
Engine Diagnosis
Engine Tune-Up
Cylinder Head, Valve Train and Camshaft
Cylinder Block, Sleeves, Pistons and Rods
Crankshaft, Main Bearing, Flywheel and Oil Seal Replacem
Lubrication System
Stall Checks, Engine Removal and Installation
Air Cleaner
Ether Injector Starting Aid
Cooling System
30 SERIES - FUEL SYSTEM
Fuel System and Filter
Fuel Injection Pumps
Fuel Injectors
Fuel Tank, Lines and Throttle Adjustment
40 SERIES - HYDRAULICS
Diagrams, Troubleshooting, Maintenance, Adjustments
Flowmeter Tests
Exploded Views of Hydraulic System
Diversion Valve R24819
Equipment Pump R25852
Equipment Control Valves
Loader, Ripper and Dozer Cylinders
50 SERIES - TRACK AND SUSPENSION
Track System
Track System - Idlers (Without Lubricant Fill Plug in Hub)
Track System - Track Frame Removal and Installation
Suspension System
Guide Levers
lntertrac Rollers
60 SERIES - POWER TRAIN
Transmission Oil Flow - Diagrams and Operations
Troubleshooting - Transmission/Torque Converter and
Hydraulic System
Diagram, Service, Transmission Removal, Controls
Transmission Control Valve
Torque Converter
Charging Pump R25586
Drive Shafts
Crawler Transmission
Transmission, Final Drives
Transmission Brakes
70 SERIES - BRAKES
Brakes - See Section 6027
Brake Pedals and Linkage, Parking Brake
80 SERIES - ELECTRICAL
Wiring Diagram
Troubleshooting
Battery
Starter and Starter Solenoid
Alternator
90. SERIES - MOUNTED EQUIPMENT
Loader
Power Tilt Dozer, Power Angle-Tilt-Pitch (ATP) Dozer
Field Removal/Installation of ATP Dozer
Blade for Transport - Supplement 1
W5A Hyster Winch
Ripper
ROPS

========================================
