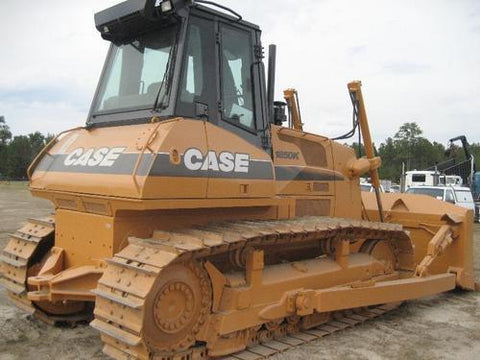

Case 1850K Crawler Dozer Workshop Service Repair Manual
Case 1850K Crawler Dozer Workshop Service Repair Manual - Official Manual !!
The Best PDF Manuals Online Includes : Bookmarks + Searchable Text + Index = Fast Navigation And Best Organization !
This is the COMPLETE Official Service Repair Manual for the CASE Crawler Dozer .
This manual contains deep information about maintaining, assembly, disassembly and servicing your Case Loader.
This PDF file is Bookmarked and SEARCHABLE to make what you need easy to find.
This Manual contains information and data to this model. has specs, diagrams, and actual real photo illustrations, and schemes, which give you complete step by step operations on repair, servicing, technical maintenance & troubleshooting procedures for your machine. this manual offers full information you need for repair your machine. the information in this manual will enable you to find trouble and to understand how to repair and maintain your machine without going into service. all pages are printable, so run off what you need and take it with you into the garage or workshop.
Table of Contents:
=========
=========
10- SERIES - GENERAL
General Engine Specifications
Detailed Engine Specifications
Detailed Fuel System Specifications
Maintenance and Lubrication
Torque Chart
20- SERIES - ENGINE
Engine Diagnosis
Engine Tune-Up
Cylinder Head, Valve Train and Camshaft
Cylinder Block, Sleeves, Pistons and Rods
Crankshaft, Main Bearing, Flywheel and Oil Seal Replacement
Lubrication System
Stall Checks, Engine Removal and Installation
Air Cleaner
Ether Injector Starting Aid
Cooling System
30- SERIES - FUEL SYSTEM
Fuel System and Filter
Fuel Injection Pumps
Fuel Injectors
Fuel Tank, Lines and Throttle Adjustment
40- SERIES - HYDRAULICS
Diagrams, Troubleshooting, Maintenance, Adjustments
Flowmeter Tests
Exploded Views of Hydraulic System
Diversion Valve R24819
Equipment Pump R25852
Equipment Control Valves
Loader, Ripper and Dozer Cylinders
50- SERIES - TRACK AND SUSPENSION
Track System
Track System- Idlers (Without Lubricant Fill Plug in Hub)
Track System- Track Frame Removal and Installation
Suspension System
Guide Levers
lntertrac Rollers
60- SERIES - POWER TRAIN
Transmission Oil Flow- Diagrams and Operations
Troubleshooting -Transmission/Torque Converter and Hydraulic System
Diagram, Service, Transmission Removal, Controls
Transmission Control Valve
Torque Converter
Charging Pump R25586
Drive Shafts
Crawler Transmission
Transmission, Final Drives
Transmission Brakes
70- SERIES - BRAKES
Brakes - See Section 6027
Brake Pedals and Linkage, Parking Brake
80- SERIES - ELECTRICAL
Wiring Diagram
Troubleshooting
Battery
Starter and Starter Solenoid
Alternator
90- SERIES - MOUNTED EQUIPMENT
Loader
Power Tilt Dozer, Power Angle-Tilt-Pitch (ATP) Dozer
Field Removal/Installation of ATP Dozer Blade for Transport
W5A Hyster Winch
Ripper
ROPS
===========
Product Details :
File Format: PDF
Compatible: All Versions of Windows & Mac
Language: English
Requirements: Adobe PDF Reader
- ===========
