Internationall Engine Diagnostics 2024 -
Latest Diagnostic & Programming Service Tool
Online Installation Service !

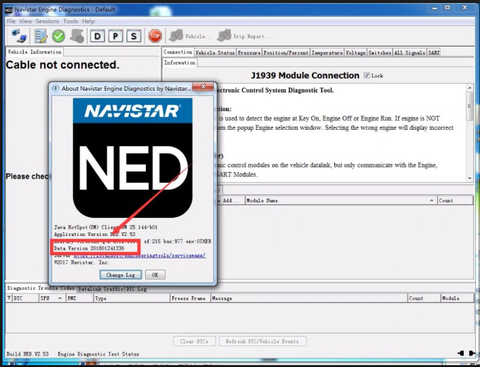

Navistarr® Engine Diagnostics is a diagnostic and programming service tool for Navistarr® Engines.

A full-featured PC application, Navistarr Engine Diagnostics is designed to meet the wide range of diagnostic challenges of servicing a mixed truck fleet

Navistarr® Engine Diagnostics is a diagnostic and programming service tool for Navistarr® Engines.

Coverage includes all J-1939 International electronic engine systems, allowing you to run special tests,
change parameters and view and graph engine data. This is the top-of-the-line tool for dealers and fleets. The application updates periodically, enabling you to have the most up-to-date coverage.

Basic Features

• Read and clear diagnostic fault codes
• View signals and parameters
• Print trip and vehicle reports

Advanced Features

• Diagnostic Tests
  • KOEO – Key On Engine Off
  • KOER – Key On Engine Running
  • KOEO – Injector Buzz Test
  • KOER – Injector Contribution Test
  • Cylinder Cutout Test (EPA 04′ and newer)
  • Injector Disable Tests (EPA 04′ and newer)
• Display and change configurable Parameters
• Crank Inhibit
• Fan Control
• Idle Shutdown Timer
• Warm-up Device
• Warning and Protection System
• Hydraulic Pressure Governor
• PTO Control
• Radiator Shutter
• Vehicle Speed Limit
• Vehicle Retarder
• Two Speed Axle
• Traction Control



Software Capabilities

• • Control System Monitoring
    • View
    • Record
    • Save
    • Playing Snapshot Recordings
  • Diagnostic Trouble Codes
    • Retrieve, View, Clear
    • HD-OBD Freeze Frame Data
  • HD-OBD Monitors
    • Monitor Results
    • Diagnostic Readiness
    • Monitor Performance Ratio
    • View, Save Print
  • Service Bay Tests
    • Key On, Engine Off
      • Actuator Tests
      • Sensor Intermittent Faults
      • Cold Start Test
    • Engine Running
      • Air Management Test
      • Cylinder Cutout Test
      • Engine Fan Test (If Equip)
      • High Pressure Pump Test
      • Aftertreatment System Tests
    • Procedures
      • Sensor Calibrating
      • Part Replacement Resets
  • Programmable Parameters
    • Engine Feature settings
      • View Programming
      • Change Programming
      • Service Interval Reset

Minimum System Requirements

• • Microsoft® Windows® Vista, or Windows 7
  • Windows® 10 64bit
  • 1GHz Intel Core 2 Duo, AMD Athlon X2 or better
  • 2GB (32-bit) or 4GB (64-bit) of RAM
  • 300MB of available hard disk space
  • 1024 x 768 pixel monitor
  • One or more RP1210A compatible communication devices with SAE J1708 and/or SAE J1939 support

  NOTE: Make sure to close Navistar Engine Diagnostics before installing a new version

Recommended Interface Cables

• • NEXIQ Technologies – Link-2
  • Dearborn Group Technologies – DPA 5
  • Noregon Systems, Inc. – DLA, DLA USB

Engine Support

• • MaxxForce 5 (2007-2009)
  • MaxxForce 7 (2007-2009)
  • MaxxForce 7 (2010-2012)
  • MaxxForce 7 (2013-)
  • MaxxForce DT, 9, 10 (2007-2009)
  • MaxxForce DT, 9, 10 (2010-2012)
  • MaxxForce DT, 9, 10 (2013)
  • MaxxForce 11, 13 (2008-2009)
  • MaxxForce 11, 13 (2010-2013)
  • MaxxForce 15 (2010-2013)
  • N9, N10 SCR (2014-)
  • N13 SCR (2013-2014)
  • N13 SCR (2015-)
  • International A26 SCR (2017-)

- O.S.: Windows XP, Windows Vista, Windows 7, Windows 10, Windows 11
