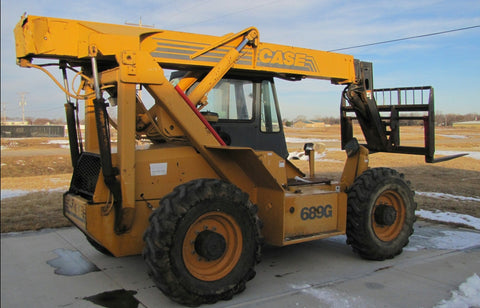

Case 689G Telescopic Handler Official Workshop Service Repair Manual
Case 689G Telescopic Handler Official Workshop Service Repair Manual
The Best PDF Manuals Online Includes : Bookmarks + Searchable Text + Index = Fast Navigation And Best Organization !
This is the COMPLETE Official Service Repair Manual for the Case 689G Telescopic Handler.
This manual contains deep information about maintaining, assembly, disassembly and servicing your Telescopic Handler.
This PDF file is Bookmarked and SEARCHABLE to make what you need easy to find.
which give you complete step by step operations on repair, servicing, technical maintenance & troubleshooting procedures for your machine.
this manual offers full information you need for repair your machine.
the information in this manual will enable you to find trouble and to understand how to repair and maintain your machine without going into service.
all pages are printable, so run off what you need and take it with you into the garage or workshop.
Models & Serials Covered:
7-88730R0
Table of Contents:
General
Section Index - General
Safety, General Information
General Specifications and Torques
Engine
Section Index-Engine
Diesel Engine
Engine and Transmission Removal and Installation
Fuel System
Section Index-Fuel System
Fuel System and Filters
Electrical
Section Index - Electrical
Electrical General Information
Electrical Schematics and Troubleshooting
Electrical Gauges and Senders
Steering
Section Index - Steering
How It Works
Steering Specifications
Steering Troubleshooting
Steering Pump and Steering Column
Steering Selector Valve
Steering Cylinders
Power Train
Section Index - Power Train
How It Works
Removal and Installation of Power Train Components
Transmission Specifications, Pressure Checks and Troubleshooting
Drive Axle
Brakes
Section Index - Brakes
How It Works
Brake System Checks, Adjustments and Specifications
Removal and Installation of Brake Components
Brake Troubleshooting
Parking Brake
Hydraulics
Section Index - Hydraulics
How It Works
Removal and Installation of Hydraulic Components
Hydraulic Troubleshooting, Checks/Adjustments and Specifications
Hydraulic Cylinders
Hydraulic and Fuel Tanks
Mounted Equipment And Chassis
Section Index - Mounted Equipment and Chassis
How It Works
Troubleshooting, Checks/Adjustments and Specifications
Removal and Installation of Boom Components
Removal of Hoods
Electrical Schematic and Hydraulic Schematic Foldout - 689G
========================================
